Model #:
GCWD3067AF
Color:
Stainless Steel
Featured
30" Double Electric Wall Oven with Total Convection
 "Model: GCWD3067AF | Frigidaire Gallery 30\" Double Electric Wall Oven with Total Convection")
30" Double Electric Wall Oven with Total Convection
Dimensions
Width: 29 7/8
Height: 50 3/4
Depth: 25 3/16
Color
Stainless Steel
Features
- Gives you maximum versatility in the kitchen, powering cooking modes like Air Fry, No Preheat, Slow Cook, Convection Bake, Steam Bake, Convection Roast, Steam Roast, Air Sous Vide, Bread Proof, Dehydrate and more!
- Eliminates time wasted waiting on your oven to heat up - simply place your food in the cold oven and get to meal time, in no time.
- Make healthier and delicious meals for your entire family - right in your oven.
- With Slow Cook, your food cooks slowly and at a lower temperature (as low as 100° F), allowing you to lock in moisture and flavor without over or undercooking your food.
- With Steam Bake, steam evenly circulates throughout the oven cavity, resulting in breads and muffins that rise higher and are light and fluffy.
- Monitors and alerts when the desired finished cooking temperature has been reached.
- We promise that your new 30" Frigidaire® Gallery double wall oven will fit your existing cabinet cutout of the same width and configuration, or we will reimburse you up to $300 for cabinet modification costs.
- Enjoy more cleaning flexibility. Select Steam Clean for a quick, 30 minute clean or choose Self Clean, which is available in 2, 3 and 4 hour cycles.
- Steam Roast uses moisture to make perfectly crispy and tender meats and vegetables that are roasted to perfection.

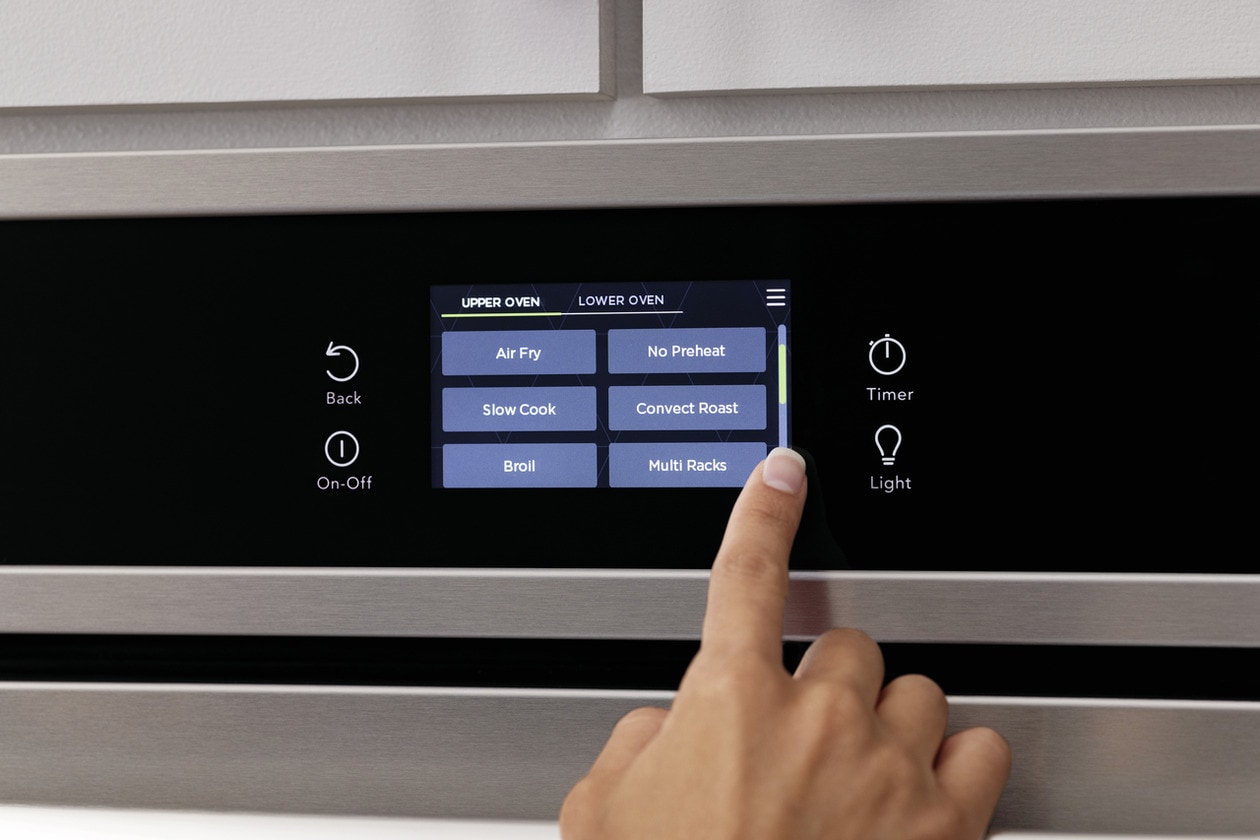

- Features a responsive 4.3 inch, full color, capacitive touch digital control panel.
- Uses precisely-controlled temperature and airflow to lock in flavor and moisture to cook foods to the finish temperature you want.

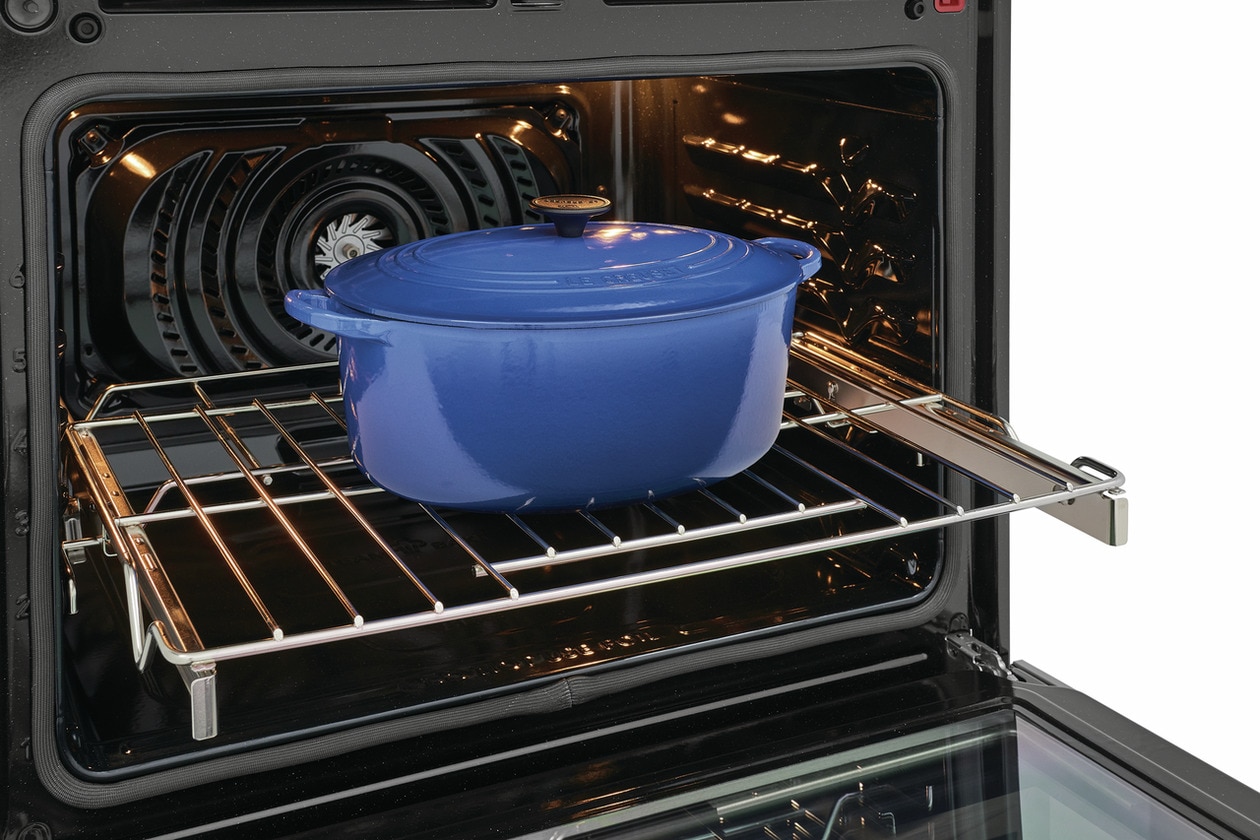

- Our extending Glide Rack makes it easier to monitor and lift your food out of the oven.
- Cook more at once with a combined 10.6 cu.ft. of oven capacity.
- Resists fingerprints and cleans easily.

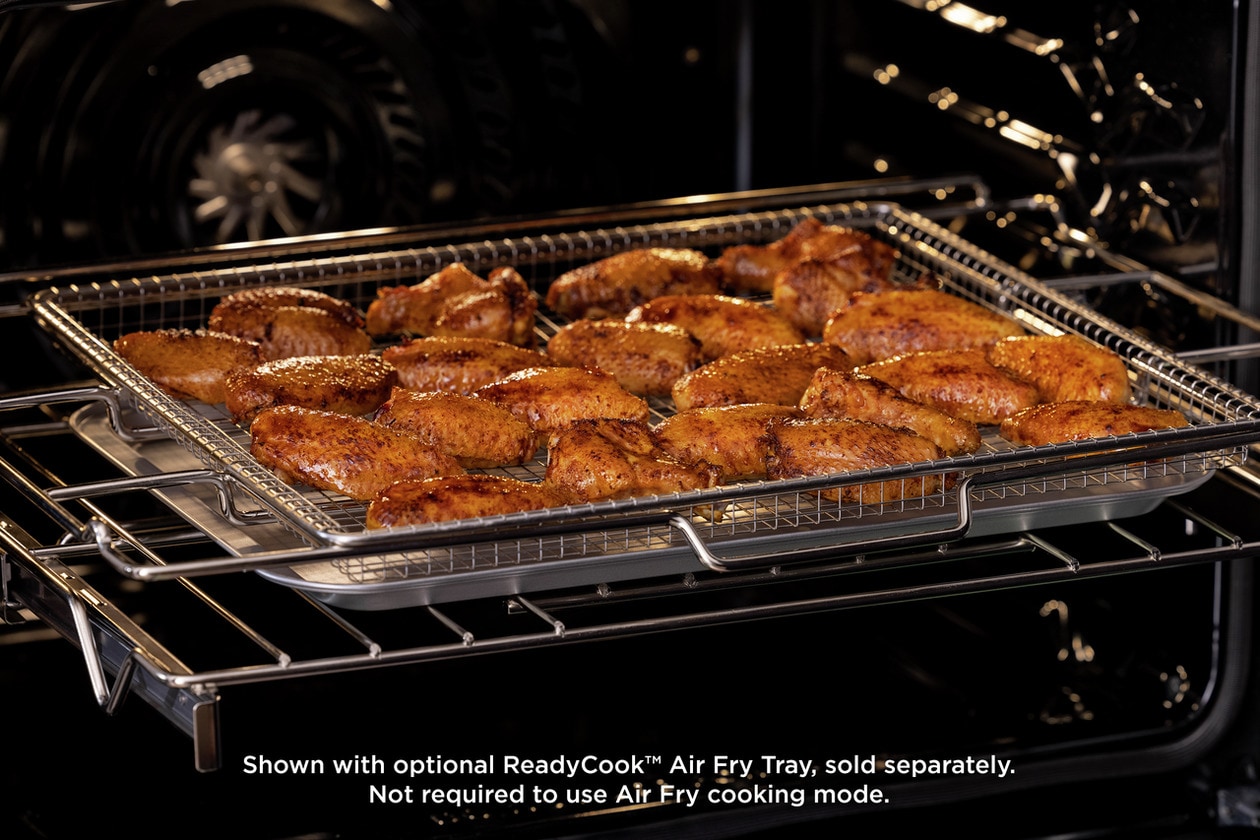

- Optional ReadyCook™ Air Fry Tray allows you to achieve perfectly crispy and delicious results.
Product Description
The Frigidaire Gallery 30" Double Wall Oven with Total Convection, features our most powerful and advanced convection system, which enables cooking modes like No Preheat, Air Fry, Slow Cook, Steam Bake, Steam Roast, Air Sous Vide, Convection Roast, Convection Bake, Bread Proof and more! Also includes a convenient temperature probe, a premium touch screen digital control panel and our fingerprint resistant, Smudge-Proof® Stainless Steel finish.
Specification
| Accessories | |
| Optional Air Fry Tray Part Number | FRIGPEREAFT |
| Optional Trim Kit Part Number | WOMC3TRIMSS, WOMC3TRIMDSS |
| Controls | |
| Control Lock | Yes |
| Sabbath Mode | Yes |
| Cooking Controls | |
| Air Fry | Yes |
| Air Sous Vide | Yes |
| Bake | Yes |
| Bake Time | Yes |
| Bread Proof | Yes |
| Broil | Yes |
| Cancel | Yes |
| Child Lock | Yes |
| Clear Off | Yes |
| Clock | Yes |
| Convection Bake | Yes |
| Convection Roast | Yes |
| Cook Time | Yes |
| Dehydrate | Yes |
| Delay Clean | Yes |
| Delay Start | Yes |
| Fast Preheat | Yes |
| Keep Warm | Yes |
| Kitchen Timer | Yes |
| Light | Yes |
| My Favorite | Yes |
| No Preheat | Yes |
| Off | Yes |
| Oven Light | Yes |
| Perfect Turkey | Yes |
| Preheat | Yes |
| Probe | Yes |
| Quick Preheat | Yes |
| Self Clean | Yes |
| Set Clock | Yes |
| Slow Cook | Yes |
| Start | Yes |
| Start Time | Yes |
| Steam Bake | Yes |
| Steam Clean | Yes |
| Steam Roast | Yes |
| Stop | Yes |
| Temperature Display | Yes |
| Timed Bake | Yes |
| Timer On / Off | Yes |
| User Preferences | Yes |
| Cooking Controls Function | |
| Change between Continuous Bake Setting or 12-Hour Energy Saving Feature | Yes |
| Delayed Bake | Yes |
| Program Fahrenheit or Celsius | Yes |
| Silent Control Panel | Yes |
| Timed Cooking | Yes |
| Dimensions and Volume | |
| Depth With Door 90° Open | 48 3/16" |
| Depth With Handle | 27 3/5" |
| Lower Oven Interior Height | 18 1/8" |
| Lower Oven Interior Width | 25 1/5" |
| Lower Oven Interior Depth | 19 7/8" |
| Upper Oven Interior Height | 18 1/8" |
| Upper Oven Interior Width | 25 1/5" |
| Upper Oven Interior Depth | 19 7/8" |
| Minimum Cutout Height | 48 7/8" |
| Minimum Cutout Width | 28 1/2" |
| Maximum Cutout Height | 50 1/4" |
| Maximum Cutout Width | 29" |
| Oven Lower Capacity | 5.3 Cu. Ft. |
| Oven Upper Capacity | 5.3 Cu. Ft. |
| Total Capacity | 10.6 Cu. Ft. |
| Display | |
| Display Interface Color | White |
| Display Light Color | White |
| Display Type | Capacitive Touch |
| Electrical Specifications | |
| Amps @ 240 Volts | 40 Amps |
| Connected Load @ 240V | 9 kW |
| Minimum Circuit Required | 40 Amps |
| Voltage Rating | 240 V |
| Exterior | |
| Exterior Finish | Smudge-Proof® Stainless Steel |
| Handle Color | Stainless Steel |
| General Specifications | |
| Frigidaire Fit Promise | Yes |
| Product Weight | 260 lbs |
| Prop 65 Label | Yes |
| Warranty - Labor | 1 Year |
| Warranty - Parts | 1 Year |
| AB-1200 | Information available at frigidaire.com/en/ab1200 |
| Installation | |
| Power Supply Connection Location | Top Left |
| Oven | |
| Bake Element | 2500 Watts |
| Bake Element Pass | 8 |
| Bake Element Type | Hidden |
| Broil Element | 4000 Watts |
| Broil Element Pass | 6 |
| Broil System | Yes |
| Cleaning System | Yes |
| Convection | Yes |
| Convection Element | 3800 Watts |
| Convection Type | Total |
| Number of Convection Fans | 1 |
| Number of Rack Positions | 6 |
| Oven Interior Color | Midnight Black |
| Oven Light Quantity | 2 |
| Oven Light Type | Halogen |
| Oven Light Watts | 40 Watts |
| Rack Position Type | Embossed |
| Rack Type 1 | Flat |
| Rack Type 1 Quantity | 5 |
| Rack Type 2 | Glide |
| Rack Type 2 Quantity | 1 |
| Safety Certifications and Approvals | |
| CSA Listed | Yes |
| RoHS | Yes |
| UL Listed | Yes |
